Technology and plants for producing H2 through light hydrocarbon

Plants Capacity:

500-2×105Nm3/h

Technical Characteristic:

● Using steam reforming transformation reaction purification flowsheet, purity of gas product can be up to 99-99.999%

● According to user's different raw materials and product requirement, an optimal flowsheet can be designed.

Field of Application:

Liquefied natural gas (LNG), naphtha, liquefied petroleum gas (LPG),refinery dry  gas etc. containing light hydrocarbon constitute materials.

Technological process:

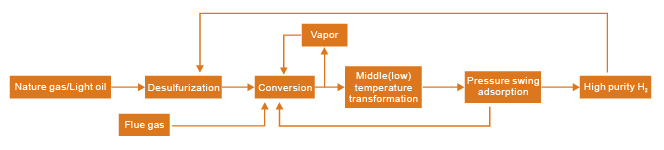

A、The flowsheet for producing H2 from light hydrocarbon not containing numerous olefins.

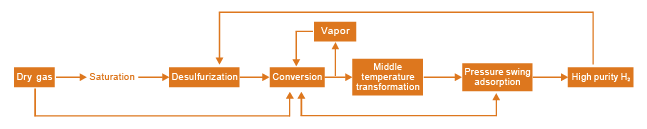

B、The flowsheet for producing H2 from light hydrocarbon containing numerous olefins.

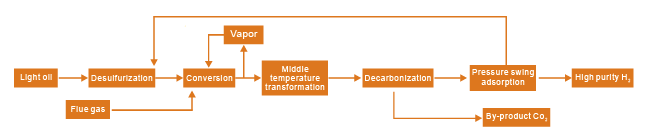

C、The flowsheet for simultaneous producing CO2 and high purity H2 (this flowsheet also suitable for reducing cost of H2 when the price of raw material is expensive)
